Westala Unify Mini AC
supports both local and centralized forwarding, with forwarding performance up to 10 Gbps.
It includes advanced features such as VLAN, gateway functionality, and deep packet inspection (DPI).
The Mini AC can manage up to 300 access points (APs) and 15,000 client devices (STAs), making it ideal for high-density enterprise deployments.

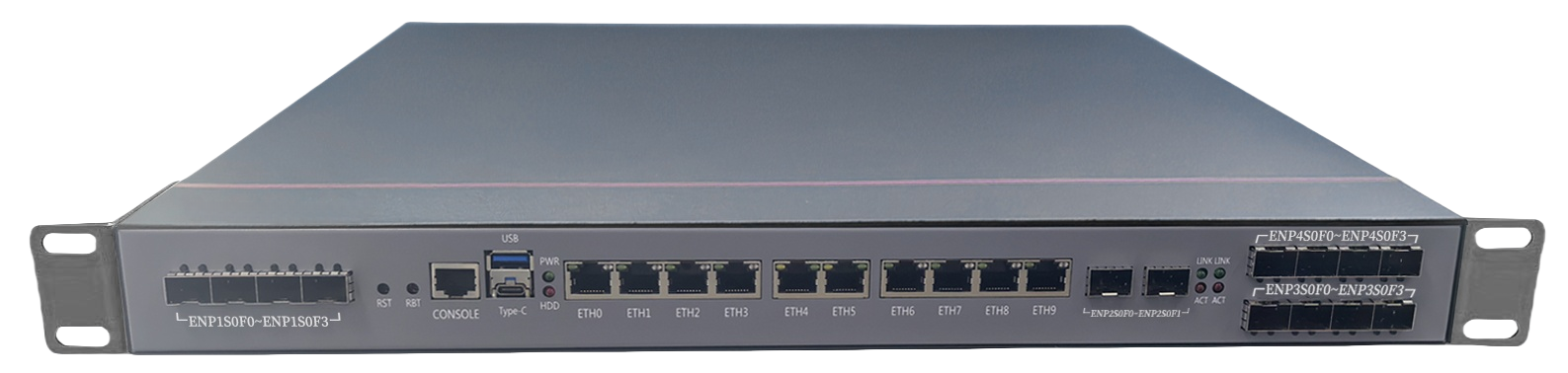

Westala Unify Local AC
supports both local and centralized forwarding, delivering forwarding performance of up to 10 Gbps.
It includes advanced networking features such as VLAN, gateway (GW) support, and deep packet inspection (DPI).
The local AC can manage up to 3,000 access points (APs) and 150,000 client devices (STAs).
It also provides a versatile port configuration, including 2×SFP+, 12×SFP, and 10×Gigabit Ethernet (GE) ports.
Designed as a unified access controller, it enables centralized management across 4G/5G, Wi-Fi, and wired network infrastructures.
Westala Soft AC is a full-featured software-based unified access controller that supports deployment across host servers, cloud platforms, or virtual machines (VMs).
In host-based deployments, it enables both local and centralized forwarding, and can be seamlessly integrated with Westala Unify NMC for centralized device and network management.
Westala Cloud AC is a cloud-based Network Management Center (NMC) and access controller platform.
It is designed to support SME and enterprise-level deployments, enabling centralized project management and full lifecycle control of all Westala devices and network products.

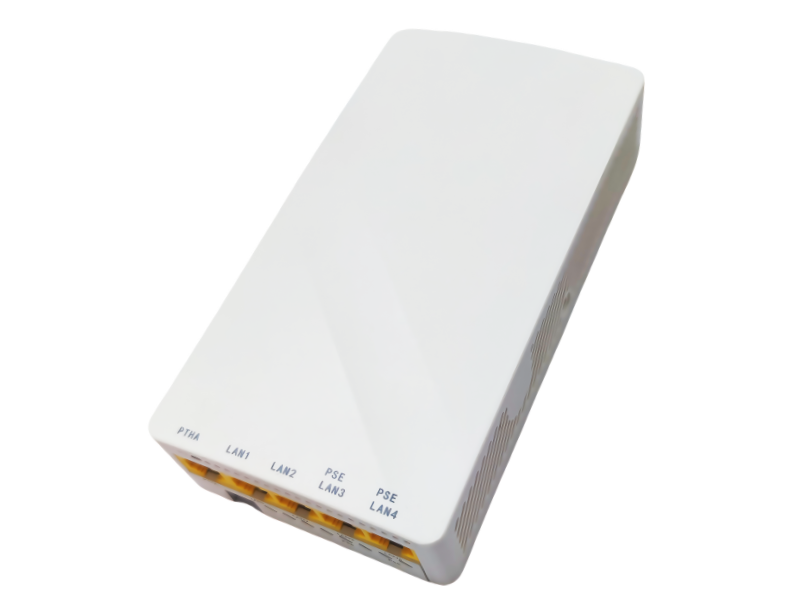

Westala WS-AP72W is a dual-band wall plate Wi-Fi 7 access point that supports both FIT and FAT AP modes.
It can be centrally managed via Westala Unify AC or Unify NMC platforms.
This AP supports 1G/10G fiber uplinks and a 1G Ethernet WAN port. It includes four LAN ports, two of which support PoE output up to 30 watts (PSE).
The device also features one passthrough port for telephone integration.
Westala WS-AP73C is a tri-band ceiling-mounted Wi-Fi 7 access point that supports both FIT and FAT AP modes.
It is fully manageable via Westala Unify AC and Unify NMC platforms.
This AP features uplink support for 1G/10G fiber and 2.5G Ethernet WAN, along with two LAN ports, both capable of PoE output up to 30 watts (PSE).

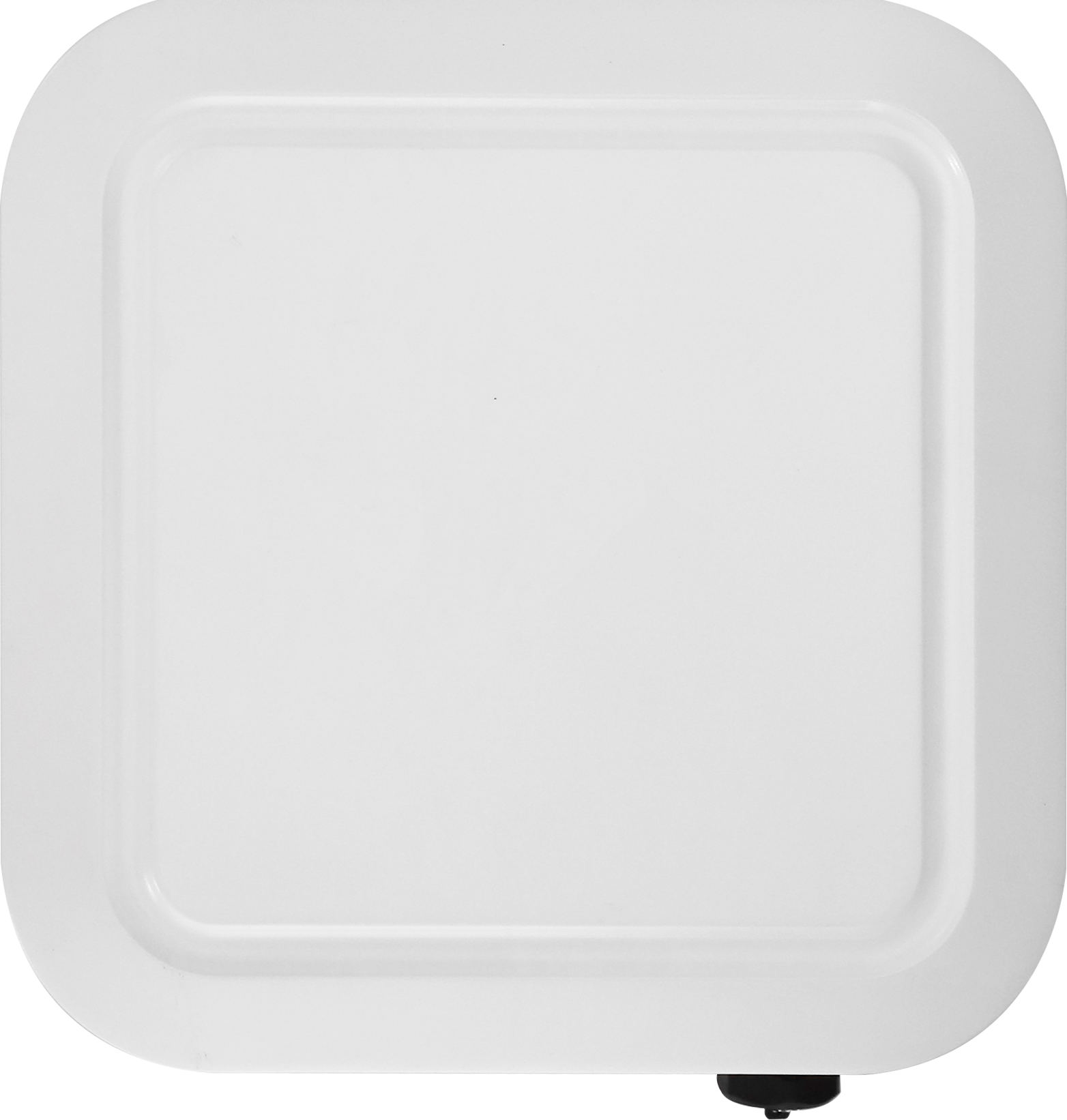

Westala WS-AP730 is a tri-band outdoor Wi-Fi 7 access point that supports both FIT and FAT AP modes.
It can be centrally managed through Westala Unify AC and Unify NMC platforms.
The AP supports 1G/10G fiber uplinks and 2.5G Ethernet WAN.
It is built to IP67 protection standards, making it fully weatherproof, and supports versatile mounting options including pole, wall, and balcony installations.
Westala WS-AP62M is a high-performance Wi-Fi 6 solution with dual-band AX3000 capability.
The master node includes 1×Gigabit WAN/LAN port and 3×LAN ports, while the client node functions exclusively as a Wi-Fi mesh extender.
This system provides seamless whole-home or enterprise-grade wireless coverage with high-speed, low-latency connectivity.

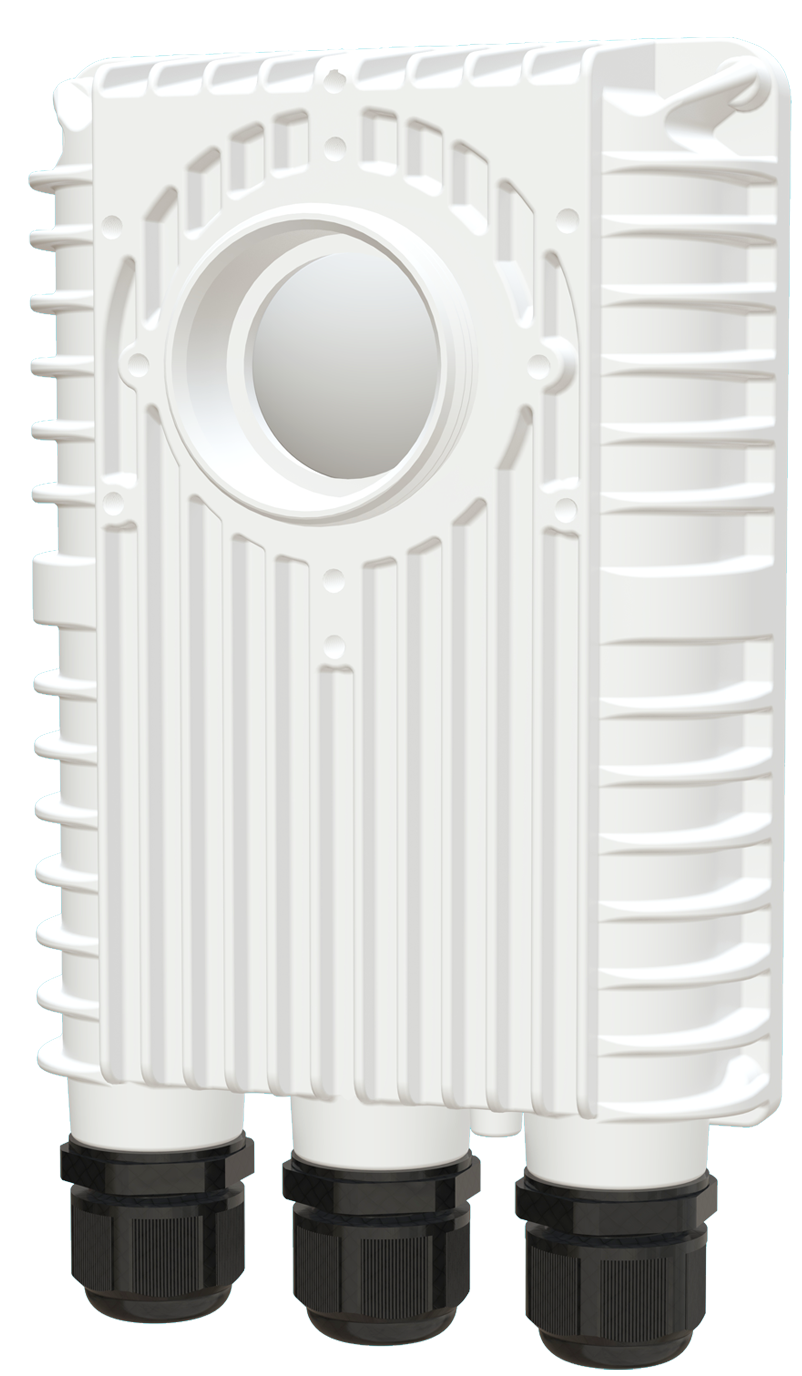

Westala WS-AP-D5 PTP (Point-to-Point) solution is designed for long-range, high-throughput wireless links.
It can be mounted directly behind a parabolic antenna to achieve up to 30 dBi high-gain performance.
The system supports link distances up to 15 km with gigabit-level throughput for backhaul and remote connectivity applications.
Westala WS-AP-D6 PTP (Point-to-Point) solution is designed for long-range, high-throughput wireless links.
It can be mounted directly behind a parabolic antenna to achieve up to 30 dBi high-gain performance.
The system supports link distances up to 15 km with gigabit-level throughput for backhaul and remote connectivity applications.
Westala ZC (Zone Controller) Next-Generation VLAN Network Control for Enterprise Environments.
The Westala ZC is a next-generation VLAN (Virtual Local Area Network) controller designed to serve as the centralized hub for managing complex enterprise networks with intelligence and precision. It adopts a centralized control architecture, enabling seamless communication with network infrastructure devices—including switches, routers, and access points (APs)—via the Access Controller (AC).
The ZC provides real-time visibility into network topology and link status, and connects upstream via its northbound interface to higher-layer management systems for receiving policy and configuration instructions.
In constructing virtual networks (zones), the ZC uses VLAN tagging and IP subnetting to logically segment and isolate traffic by business type or function. It efficiently aggregates dispersed VLAN traffic across physical locations, routing it back to the ZC for centralized processing and forwarding.
This control-plane/service-plane separation model eliminates the complexity of distributed configuration, significantly improving network agility, deployment efficiency, and traffic scheduling flexibility.

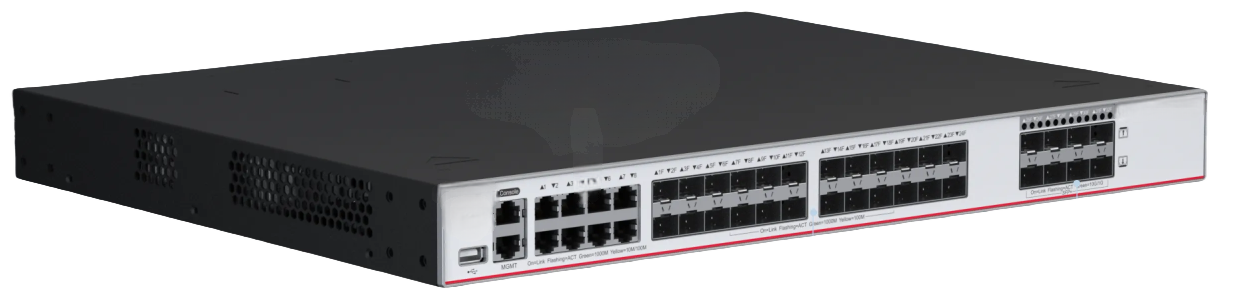

Westala SMART AP
High-Density Converged Access Switch with Intelligent
Management
The Westala SMART AP is a high-capacity converged access
switch designed for enterprise networks. It acts as a
central aggregation point between smart equipment rooms,
edge devices, and wireless access points (APs).
A key feature is its integration with the Westala
Unify OMC, enabling automated device discovery,
configuration, and monitoring for streamlined operations.
Features:
24× 1G/10G downlink
ports for connecting APs and other access-layer devices
8× 10G/25G uplink ports for network aggregation,
business convergence, and upstream connectivity to Access
Controllers (AC) and Zone Controllers (ZC)
It also
supports local service clustering, making it ideal for
scalable and intelligent enterprise deployments.
